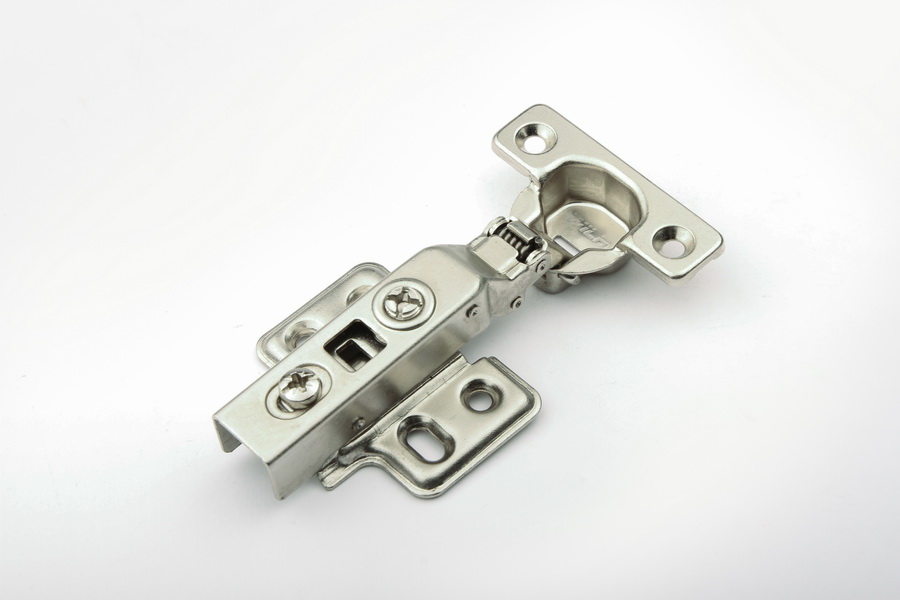

MQ Series 95° Mini Soft Closing Concealed Hinge with Fixed Plate
MQ Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 95°
Function Soft Close
Plate type Fixed Plate
Cup depth 9.6 mm
Cup diameter 26 mm
Drilling distance 3 mm - 7 mm
Door thickness 12 mm - 18 mm
Material Cold Rolled Steel
Height adj range 4 mm
Overlay adj range 6 mm
Depth adj range 5 mm
Finish Copper Nickel
Packaging 100 Units per Carton
Notable features
- Compact design.
