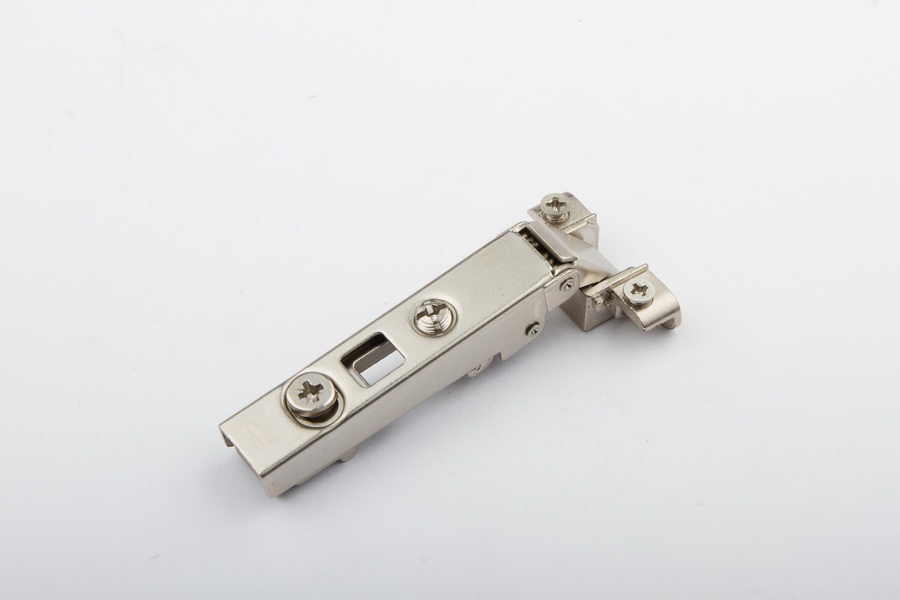

AN Series 105° Two-way Regular Concealed Hinge for Aluminum Frames (Cam Adjustable)
AN Series
Butt Hinge Image Download Tech Sheet
Specification
Opening angle 105°
Function Auto Close
Plate type Clip On
Cup depth Aluminum Frame Die Cut (See Drawing)
Cup diameter 42/28 mm
Drilling distance Aluminum Frame Die Cut (See Drawing)
Door thickness 19 mm - 23 mm
Material Cold Rolled Steel
Height adj range Plate Adjustment
Overlay adj range 6 mm
Depth adj range 3.8 mm
Finish Copper Nickel
Packaging 200 Units per Carton
Notable features
- Heavy duty product. - Designed for thin aluminum frame. - Flush installation for minimal effect on cabinet design.
